EM4000 I/O Expansion Module
Rugged I/O Expansion and Control Module for Industrial Engine Systems
Designed for use as a standalone I/O controller or as an expansion module for MBW engine control systems.
The EM4000 I/O Expansion Module is a rugged, sealed control module designed to extend input and output capability for industrial engines and equipment control systems. It supports integration with MBW engine controllers as well as other systems capable of reading SAE J1939 messaging.
Designed for flexibility, the EM4000 may be deployed as a standalone I/O controller or used as an expansion module within a larger control system. Typical applications include system monitoring, automation, and custom I/O integration for industrial, mobile, and off-highway equipment.
The EM4000 is currently in development. Please contact MBW Technologies to discuss application requirements, integration options, or availability.
Configuration and availability subject to application requirements.
Key Capabilities
- Rugged, sealed module designed for harsh industrial and mobile environments
- Operates as an expansion module or standalone controller
- Low-power sleep mode for reduced standby current draw
- CAN gateway functionality translating analog and digital signals to SAE J1939 messaging
- Real-time clock supporting scheduled automation and control events
- Field-updatable firmware and configurable I/O mapping
Inputs & Outputs Overview
Analog Inputs
- Supports voltage, resistance, and 4–20 mA current loop inputs
- Configurable for common industrial sensors (pressure, temperature, level, etc.)
Digital Inputs
- Multiple configurable digital inputs
- Suitable for status monitoring, control signals, and system interlocks
Tachometer Input
- Dedicated engine speed input
- Supports common tach signal sources (e.g., magnetic pickup, alternator, or ignition-based signals)
Outputs
- High-current switched outputs for driving external loads
- Low-side driver outputs for relays and control circuits
- Motor driver / PWM-capable output for actuator control
Communications & Integration
CAN Interfaces
- SAE J1939 CAN (2.0B) for engine and system communication
- Secondary isolated CAN interface compatible with NMEA 2000 networks
Additional Interfaces
- RS-485 interface supporting Modbus RTU
- USB interface for configuration and firmware updates
- Optional Bluetooth (BLE) interface for wireless configuration and diagnostics
Integration Notes
- Supports translation of analog and digital I/O data to standard J1939 messages
- Designed for integration with MBW engine controllers and third-party CAN-based systems
- Suitable for standalone or system-integrated control architecture
Configuration & Software
The EM4000 is configured using a PC-based configuration application that allows flexible mapping of inputs and outputs, communication parameters, and system behavior to match application requirements.
Configuration & Update Methods
- PC-based configuration utility
- CAN Bus based configuration via MBW Controllers
- Firmware updates via USB interface or USB flash drive
- Optional Bluetooth interface for wireless configuration and diagnostics (Future Feature)

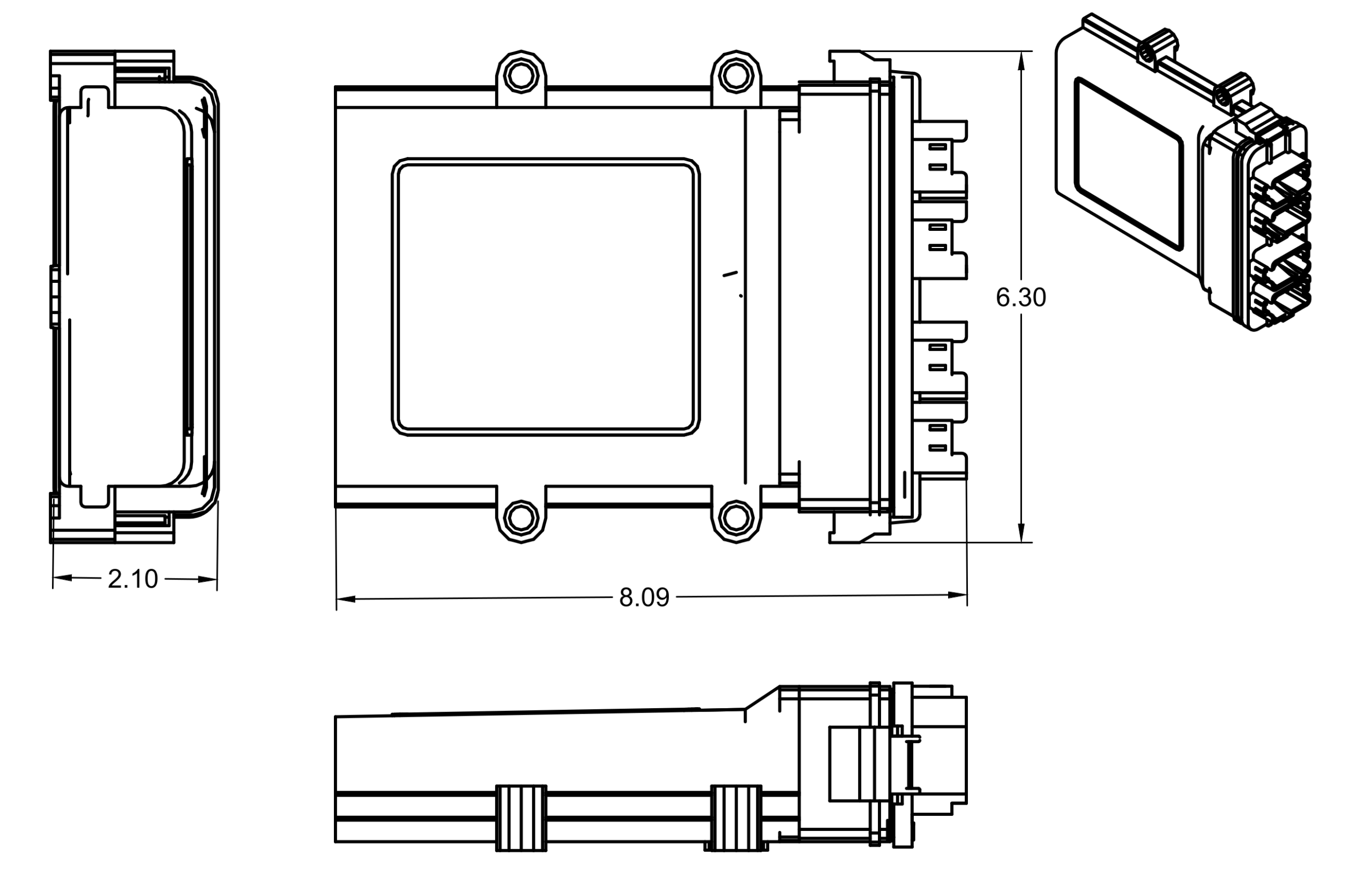

Environmental & Electrical Summary
|
Parameter |
Specification |
|---|---|
|
Operating Voltage |
7–32 VDC |
|
Operating Temperature |
−40 °C to +80 °C |
|
Enclosure |
IP67-rated housing (manufacturer certified) |
|
Sleep Current |
<5 mA |
|
Vibration / Shock |
Designed to meet SAE J1455 and MIL-STD-202 |
Availability & Development Status
Development Status: Coming Soon
The EM4000 I/O Expansion Module is currently in development. Please contact MBW Technologies to discuss availability, early project planning, or system integration requirements.
Documentation & Downloads
Detailed technical information for system integration, configuration, and installation.
- EM4000 Datasheet (PDF)
- EM4000 Installation & User Manual (PDF) (not yet available)
